Centigraphe Calibre 1506 FP Journe FP Journe

Titanium case and bracelet
Diameter: 44 mm
Overall height: 11 mm
Dial: yellow, in Aluminium alloy with applied luminescent indexes and numerals, counters in sapphire
Hands: big luminescent hands in Steel, small hands in red lacquered Titanium
Calibre 1506

Technical Specifications

MOVEMENT :

    Manual winding
    Movement in Aluminium alloy for the Titanium version; or in 18K rose Gold for the 18K 6N Gold and Platinum versions

DIMENSIONS :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

FREQUENCY :

    21,600 Alt/h, (3Hz)

INERTIA :

    10.10 mg / cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    0h dial up: 320°
    24h dial up: 280°

ESCAPEMENT :

    In-line lever escapement
    15-tooth escape wheel

INDICATIONS :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

CHRONOGRAPH :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

AUTONOMY :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

FINISHES :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

CONTROL :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

NUMBER OF PARTS :

    Movement without dial: 284
    Cased up with bracelet: 483
    Jewels: 50

MOVEMENT :

    Manual winding
    Movement in Aluminium alloy for the Titanium version; or in 18K rose Gold for the 18K 6N Gold and Platinum versions

DIMENSIONS :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

FREQUENCY :

    21,600 Alt/h, (3Hz)

INERTIA :

    10.10 mg / cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    0h dial up: 320°
    24h dial up: 280°

ESCAPEMENT :

    In-line lever escapement
    15-tooth escape wheel

INDICATIONS :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

CHRONOGRAPH :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

AUTONOMY :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

FINISHES :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

CONTROL :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

NUMBER OF PARTS :

    Movement without dial: 284
    Cased up with bracelet: 483
    Jewels: 50

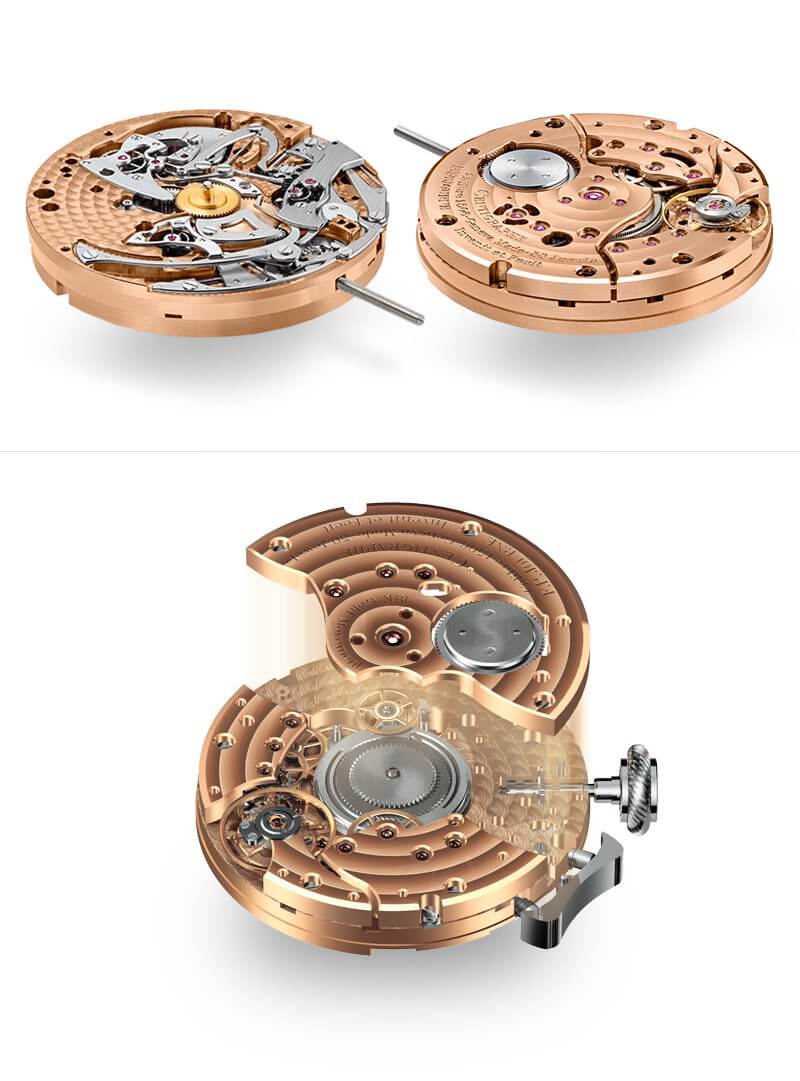

At the heart of the movement
At the heart of the movement
Brevet - CHRONOGRAPHE N°: EP 07405107 | INTERRUPTEUR N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P.Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running. These two innovations have been patented.

The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - CHRONOGRAPHE N°: EP 07405107 | INTERRUPTEUR N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P.Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running. These two innovations have been patented.

The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
