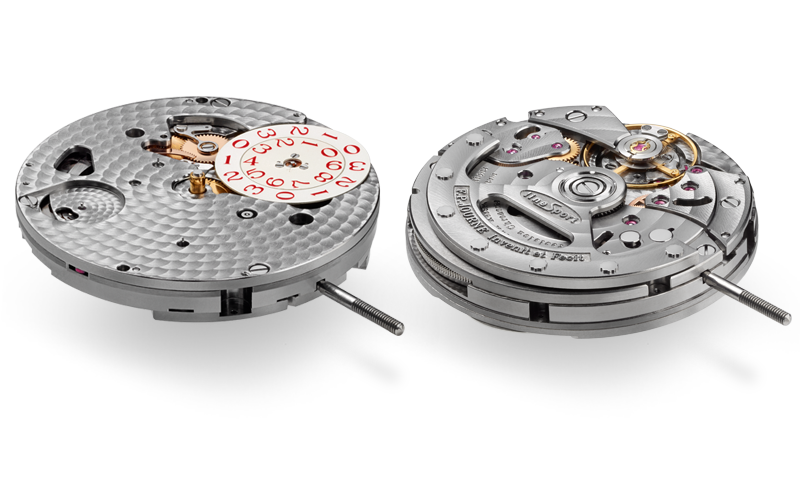

Calibre 1300.3 https://www.fpjourne.com/en/collection/linesport-collection/octa-sport-titanium FP Journe https://www.fpjourne.com/en FP Journe
Diameter: 42 mm
Overall height: 11.6 mm
Dial: Aluminium alloy and sapphire with luminescent indexes and numbers
Hands: big luminescent hands in Steel, small hands in white Steel and red lacquered Titanium
Technical Specifications
Unidirectional automatic winding
Movement in aluminium alloy
3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2
Instant jump calendar
Off centre winding rotor in Titanium with Tungsten segment barrel with slipping spring
Escapement 15 tooth
Centred hours and minutes
Small second at 6h00
Day/Night indication at 9h00
Power reserve at 10h30
Large date at 1h00
- Overall diameter : 30.80 mm
- Casing-up diameter : 30.40 mm
- Overall height : 6.00 mm
- Height if winding stem : 3.00 mm
- Diameter of stem thread : S0.90mm
Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered
Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud
21'600 Alt/h, 3 Hz
10.10 mg/cm2
52°
12 h dial up : 280°
90 h dial up : 220°
160 ± 10 hours
On watch winder: 274 rotations / 24 hours
Unidirectional automatic winding
Movement in aluminium alloy
3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2
Instant jump calendar
Off centre winding rotor in Titanium with Tungsten segment barrel with slipping spring
Escapement 15 tooth
Centred hours and minutes
Small second at 6h00
Day/Night indication at 9h00
Power reserve at 10h30
Large date at 1h00
- Overall diameter : 30.80 mm
- Casing-up diameter : 30.40 mm
- Overall height : 6.00 mm
- Height if winding stem : 3.00 mm
- Diameter of stem thread : S0.90mm
Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered
Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud
21'600 Alt/h, 3 Hz
10.10 mg/cm2
52°
12 h dial up : 280°
90 h dial up : 220°
160 ± 10 hours
On watch winder: 274 rotations / 24 hours
Technical description
Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.
Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
Technical description
Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.
Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
