AUTOMATIQUE RÉSERVE - Ref. ARS2/AR2 Calibre 1300.3 https://www.fpjourne.com/en/collection/linesport-collection/automatique-reserve-0 FP Journe https://www.fpjourne.com/en FP Journe

Titanium case and bracelet
Diameter: 44 mm
Overall height: 11 mm
Dial: yellow, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory coloured Steel and red lacquered Titanium

Calibre 1300.3

Technical Specifications

MOVEMENT :

Unidirectional automatic winding
Movement in Aluminium alloy for the Titanium version; or in 18K rose Gold for the 18K 6N Gold and Platinum versions
Instant jump calendar
Off centre winding rotor in Titanium with Tungsten segment for the Titanium version; or in 22K 5N Gold for the 18K 6N Gold and Platinum versions
Escapement 15 tooth

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

Centred hours and minutes
Small second at 6h00
Day/Night indication at 9h00 for the Titanium version; or at 7h30 for the 18K 6N Gold and Platinum versions
Power reserve at 10h30 for the Titanium version; or at 9h30 for the 18K 6N Gold and Platinum versions
Very large date at 1h00

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

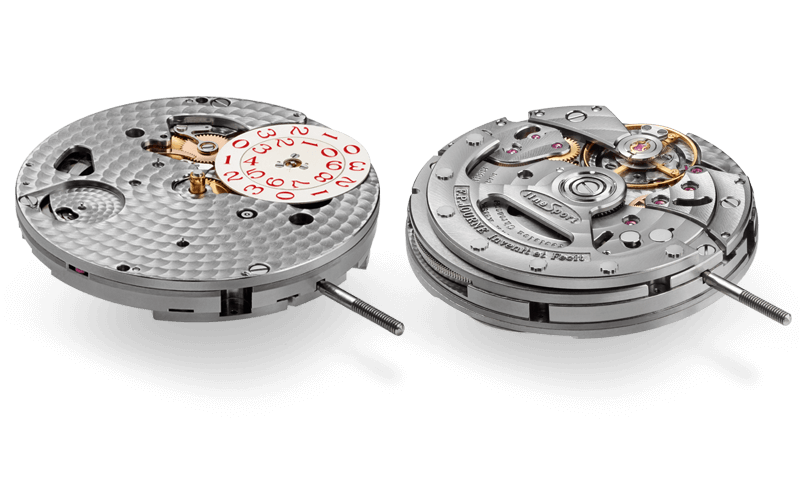

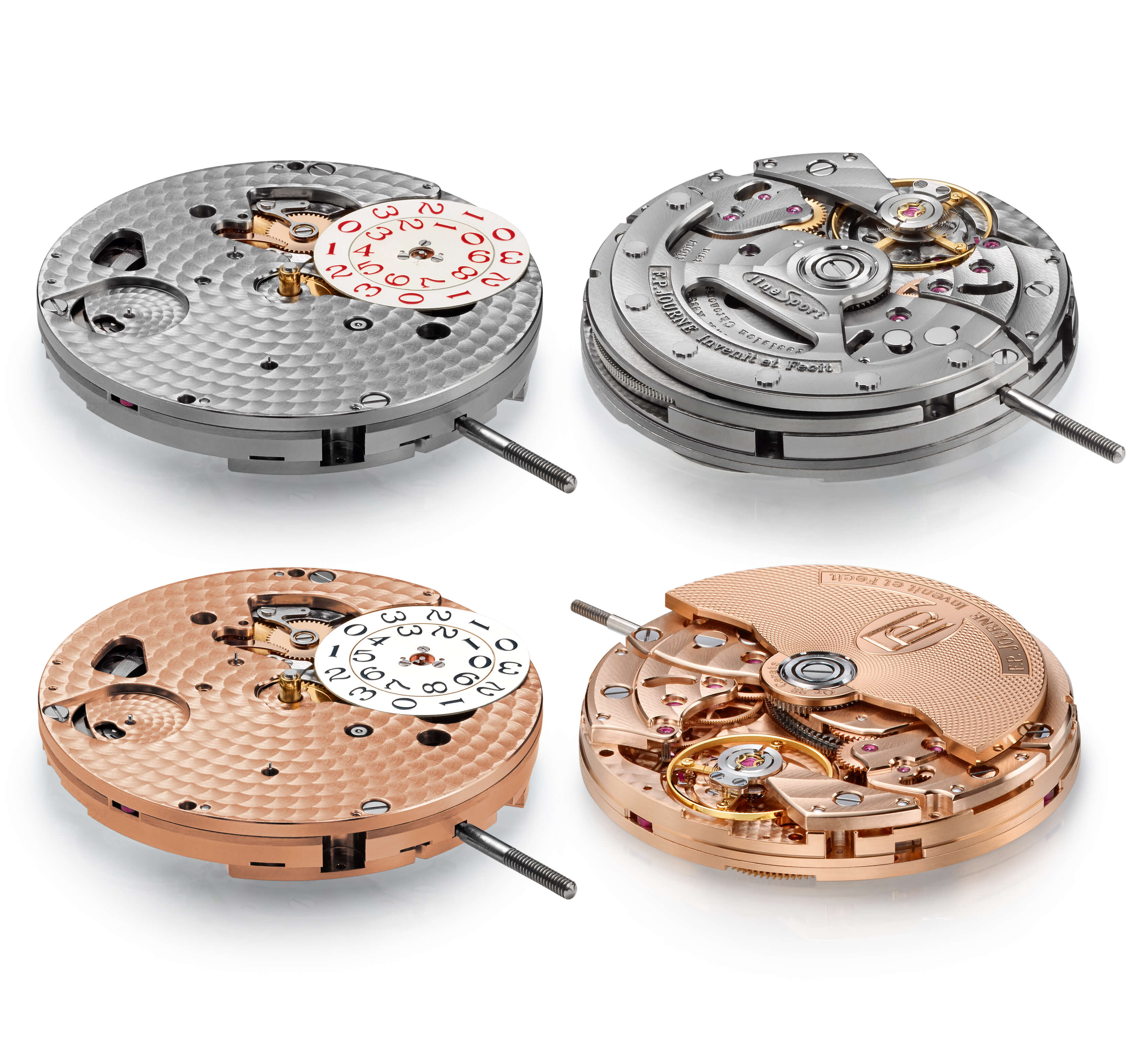

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Titanium case and bracelet
Diameter: 44 mm
Overall height: 11 mm
Dial: slate grey, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory coloured Steel and red lacquered Titanium

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 11 mm
Dial: Silver guilloché dial covered with Ruthenium, matte 5N Gold applied numerals, seconds counter in whitened guilloché Silver
Hands: matte 5N gilt Steel and blued Steel

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Platinum case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 11 mm
Dial: Silver guilloché dial in blue-mauve colour, matte white Gold applied numerals, seconds counter in whitened guilloché Silver
Hands: matte rhodium plated Steel and blued Steel

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Finishing

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Calibre 1300.3

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Find aboutique
Catalogue

AUTOMATIQUE RÉSERVE - Ref. ARS2/AR2 Calibre 1300.3 https://www.fpjourne.com/en/collection/linesport-collection/automatique-reserve-0 FP Journe https://www.fpjourne.com/en FP Journe

Other views

About

THE LINESPORT COLLECTION BROADENS WITH THE NEW AUTOMATIQUE RÉSERVE, AVAILABLE IN 3 VERSIONS: ONE IN TITANIUM GRADE 5, ONE IN 18K 6N GOLD AND ONE IN PLATINUM PT950.

THE CASE OF 44 MM DIAMETER AND 11 MM THICK, WITH BEZEL INLAID WITH CERAMIC, ENCLOSES THE OCTA 1300.3 AUTOMATIC MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY FOR THE TITANIUM VERSION AND IN 18K ROSE GOLD FOR THE 18K 6N GOLD AND PLATINUM VERSIONS.

THE 3 VERSIONS HAVE DIFFERENT DIALS:
- FOR THE TITANIUM MODEL, A DIAL IN ALUMINUM ALLOY OF YELLOW OR ANTHRACITE COLOUR WITH LUMINESCENT APPLIED NUMERALS, SECONDS COUNTER IN WHITE SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 83 GRAMS.
- FOR THE 6N GOLD MODEL, A SILVER GUILLOCHE DIAL COVERED WITH RUTHENIUM AND APPLIQUES NUMERALS IN MATTE 6N GOLD, SECONDS COUNTER IN WHITENED SILVER AND MATTE 5N GOLDEN HANDS.
- FOR THE PLATINUM MODEL, A BLUE-MAUVE COLOUR SILVER GUILLOCHE DIAL WITH APPLIQUES NUMERALS IN MATTE WHITE GOLD, SECONDS COUNTER IN WHITENED SILVER AND MATTE RHODIED HANDS.

THE AUTOMATIQUE RÉSERVE FEATURES A DAY AND NIGHT INDICATION AND A DATE NOW EVEN LARGER (4.7 X 2.6MM) FOR OPTIMAL READABILITY. THE AUTOMATIC WINDING MECHANICAL MOVEMENT USES ANY SLIGHTEST MOVEMENT OF THE WRIST TO INCREASE THE WINDING OF THE WATCH PROVIDING 160 HOURS OF POWER RESERVE.

THE METAL BRACELETS ARE ASSORTED TO THEIR RESPECTIVE CASE. TWO NEW BRACELETS IN 18K 6N GOLD AND PLATINUM WITH MATTE HAMMERED FINISHING HAVE BEEN DEVELOPED. THE LINKS ATTACHED TO THE CASE ARE ALSO ARTICULATED TO ADAPT TO THE DIFFERENT WRIST SIZES WITH AN ADJUSTABLE FOLDING CLASP IN LENGTH OF APPROXIMATELY 5 MM.

Testimony

Calibre OCTA

A horological ideal

“The construction of the Octa calibre has less powerful ties with horological history than do the constant-force device or resonance models, but it symbolises an horological ideal of giving timekeepers the highest possible degree of precision and autonomy!

One can indeed note the fact that if church clocks are placed so high, in addition to enhancing visibility, it was mostly because it often took an entire month for the driving-weights to drop the length of their cords. Numerous systems were invented to increase the operating duration of timekeeping devices, meeting with various degrees of success. Given the small volume of a wristwatch, the size of the mainspring was automatically limited. Watchmakers therefore discovered the trick of adding an extra wheel to the customary geartrain in order to extend the duration of its development. Unfortunately, actually using this system, even with a stronger spring, led them to observe that the level of energy actually reaching the balance remained low. To compensate for this, they fitted a smaller balance using less energy, but which was also less stable. It is therefore not unusual to find that some watches able to run for several days display an extremely unpredictable level of precision.

This challenge was a powerful source of motivation! I then imagined that the best and the most obvious means of extending the running duration would be to extend the capacity of the spring development. The difficulty lay in integrating it on the same level as the gear-train and the escapement, given its stability: 1 metre and 1 millimetre thick. Thanks to the low torque of this spring, I could achieve extremely fast automatic winding (one and a half hours on a Chappuis cyclotest for over 5 days’ running).

Once the challenge of autonomy was thus successfully met with this automatic winding calibre, I knuckled down to the second challenge of managing to insert various complications into that same movement: power reserve with large date display, fly-back chronograph with large date display, retrograde annual calendar, etc… and of doing so while maintaining an identical size for all models.

Three years of research and development were required before this automatic winding movement that is unique in the world could be presented to the public.”

François-Paul Journe

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

About

THE LINESPORT COLLECTION BROADENS WITH THE NEW AUTOMATIQUE RÉSERVE, AVAILABLE IN 3 VERSIONS: ONE IN TITANIUM GRADE 5, ONE IN 18K 6N GOLD AND ONE IN PLATINUM PT950.

THE CASE OF 44 MM DIAMETER AND 11 MM THICK, WITH BEZEL INLAID WITH CERAMIC, ENCLOSES THE OCTA 1300.3 AUTOMATIC MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY FOR THE TITANIUM VERSION AND IN 18K ROSE GOLD FOR THE 18K 6N GOLD AND PLATINUM VERSIONS.

THE 3 VERSIONS HAVE DIFFERENT DIALS:
- FOR THE TITANIUM MODEL, A DIAL IN ALUMINUM ALLOY OF YELLOW OR ANTHRACITE COLOUR WITH LUMINESCENT APPLIED NUMERALS, SECONDS COUNTER IN WHITE SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 83 GRAMS.
- FOR THE 6N GOLD MODEL, A SILVER GUILLOCHE DIAL COVERED WITH RUTHENIUM AND APPLIQUES NUMERALS IN MATTE 6N GOLD, SECONDS COUNTER IN WHITENED SILVER AND MATTE 5N GOLDEN HANDS.
- FOR THE PLATINUM MODEL, A BLUE-MAUVE COLOUR SILVER GUILLOCHE DIAL WITH APPLIQUES NUMERALS IN MATTE WHITE GOLD, SECONDS COUNTER IN WHITENED SILVER AND MATTE RHODIED HANDS.

THE AUTOMATIQUE RÉSERVE FEATURES A DAY AND NIGHT INDICATION AND A DATE NOW EVEN LARGER (4.7 X 2.6MM) FOR OPTIMAL READABILITY. THE AUTOMATIC WINDING MECHANICAL MOVEMENT USES ANY SLIGHTEST MOVEMENT OF THE WRIST TO INCREASE THE WINDING OF THE WATCH PROVIDING 160 HOURS OF POWER RESERVE.

THE METAL BRACELETS ARE ASSORTED TO THEIR RESPECTIVE CASE. TWO NEW BRACELETS IN 18K 6N GOLD AND PLATINUM WITH MATTE HAMMERED FINISHING HAVE BEEN DEVELOPED. THE LINKS ATTACHED TO THE CASE ARE ALSO ARTICULATED TO ADAPT TO THE DIFFERENT WRIST SIZES WITH AN ADJUSTABLE FOLDING CLASP IN LENGTH OF APPROXIMATELY 5 MM.
Testimony

Calibre OCTA

A horological ideal

“The construction of the Octa calibre has less powerful ties with horological history than do the constant-force device or resonance models, but it symbolises an horological ideal of giving timekeepers the highest possible degree of precision and autonomy!

One can indeed note the fact that if church clocks are placed so high, in addition to enhancing visibility, it was mostly because it often took an entire month for the driving-weights to drop the length of their cords. Numerous systems were invented to increase the operating duration of timekeeping devices, meeting with various degrees of success. Given the small volume of a wristwatch, the size of the mainspring was automatically limited. Watchmakers therefore discovered the trick of adding an extra wheel to the customary geartrain in order to extend the duration of its development. Unfortunately, actually using this system, even with a stronger spring, led them to observe that the level of energy actually reaching the balance remained low. To compensate for this, they fitted a smaller balance using less energy, but which was also less stable. It is therefore not unusual to find that some watches able to run for several days display an extremely unpredictable level of precision.

This challenge was a powerful source of motivation! I then imagined that the best and the most obvious means of extending the running duration would be to extend the capacity of the spring development. The difficulty lay in integrating it on the same level as the gear-train and the escapement, given its stability: 1 metre and 1 millimetre thick. Thanks to the low torque of this spring, I could achieve extremely fast automatic winding (one and a half hours on a Chappuis cyclotest for over 5 days’ running).

Once the challenge of autonomy was thus successfully met with this automatic winding calibre, I knuckled down to the second challenge of managing to insert various complications into that same movement: power reserve with large date display, fly-back chronograph with large date display, retrograde annual calendar, etc… and of doing so while maintaining an identical size for all models.

Three years of research and development were required before this automatic winding movement that is unique in the world could be presented to the public.”

François-Paul Journe
Technical description
Technical Specifications
MOVEMENT :

Unidirectional automatic winding
Movement in Aluminium alloy for the Titanium version; or in 18K rose Gold for the 18K 6N Gold and Platinum versions
Instant jump calendar
Off centre winding rotor in Titanium with Tungsten segment for the Titanium version; or in 22K 5N Gold for the 18K 6N Gold and Platinum versions
Escapement 15 tooth
DIMENSIONS :

Overall diameter : 34.60 mm

Casing-up diameter : 30.40 mm

Overall height Aluminium : 6.10 mm

Overall height Gold : 5.90 mm

Height if winding stem : 3.10 mm

Diameter of stem thread : S1.20 mm
BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud
FREQUENCY :

21 600 Alt/h, 3 Hz
INERTIA :

10.10 mg/cm2
ANGLE OF LIFT :

52°
AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°
CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2
INDICATIONS :

Centred hours and minutes
Small second at 6h00
Day/Night indication at 9h00 for the Titanium version; or at 7h30 for the 18K 6N Gold and Platinum versions
Power reserve at 10h30 for the Titanium version; or at 9h30 for the 18K 6N Gold and Platinum versions
Very large date at 1h00
AUTONOMY :

160 ± 10 hours
WINDING SPEED :

On watch winder: 274 rotations / 24 hours
DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered
NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37
MOVEMENT :

Unidirectional automatic winding
Movement in Aluminium alloy for the Titanium version; or in 18K rose Gold for the 18K 6N Gold and Platinum versions
Instant jump calendar
Off centre winding rotor in Titanium with Tungsten segment for the Titanium version; or in 22K 5N Gold for the 18K 6N Gold and Platinum versions
Escapement 15 tooth
DIMENSIONS :

Overall diameter : 34.60 mm

Casing-up diameter : 30.40 mm

Overall height Aluminium : 6.10 mm

Overall height Gold : 5.90 mm

Height if winding stem : 3.10 mm

Diameter of stem thread : S1.20 mm
BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud
FREQUENCY :

21 600 Alt/h, 3 Hz
INERTIA :

10.10 mg/cm2
ANGLE OF LIFT :

52°
AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°
CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2
INDICATIONS :

Centred hours and minutes
Small second at 6h00
Day/Night indication at 9h00 for the Titanium version; or at 7h30 for the 18K 6N Gold and Platinum versions
Power reserve at 10h30 for the Titanium version; or at 9h30 for the 18K 6N Gold and Platinum versions
Very large date at 1h00
AUTONOMY :

160 ± 10 hours
WINDING SPEED :

On watch winder: 274 rotations / 24 hours
DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered
NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37
At the heart of the movement

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1

Technical description

Technical Specifications

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

MOVEMENT :

DIMENSIONS :

Overall diameter : 34.60 mm
Casing-up diameter : 30.40 mm
Overall height Aluminium : 6.10 mm
Overall height Gold : 5.90 mm
Height if winding stem : 3.10 mm
Diameter of stem thread : S1.20 mm

BALANCE :

Four adjustable inertia weights
Anachron free-sprung flat balance spring
Mobile stud holder
Free Sprung
Nivatronic laser soldered balance spring
Pinned GE stud

FREQUENCY :

21 600 Alt/h, 3 Hz

INERTIA :

10.10 mg/cm2

ANGLE OF LIFT :

52°

AMPLITUDE :

12 h dial up : 280°
90 h dial up : 220°

CROWN :

3 positions:
Winding of the watch in position 0, clock wise
Correction of date in position 1, anti clock wise
Correction of time in position 2

INDICATIONS :

AUTONOMY :

160 ± 10 hours

WINDING SPEED :

On watch winder: 274 rotations / 24 hours

DECORATION :

Circular Côtes de Genève on bridges
Partly circular graining on baseplate
Plished screw heads with chamfered slots
Chamfered and circular grained wheels
Steel components hand polished and chamfered

NUMBER OF PARTS :

Movement without dial : 286
Cased up with bracelet : 463
Jewels : 37

At the heart of the movement

Brevet - EP 1 760 544 A1

Technical description

Brevet - EP 1 760 544 A1
