CHRONOGRAPHE RATTRAPANTE - Ref. CMS/CM Calibre 1518 FP Journe FP Journe

Titanium case and bracelet
Diameter: 44 mm
Overall height: 12.1 mm
Dial: yellow, in Aluminium alloy with applied luminescent numerals, counters in sapphire
Hands: big luminescent hands in Steel, black coloured Steel, ivory coloured Steel and small hands in red lacquered Titanium
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

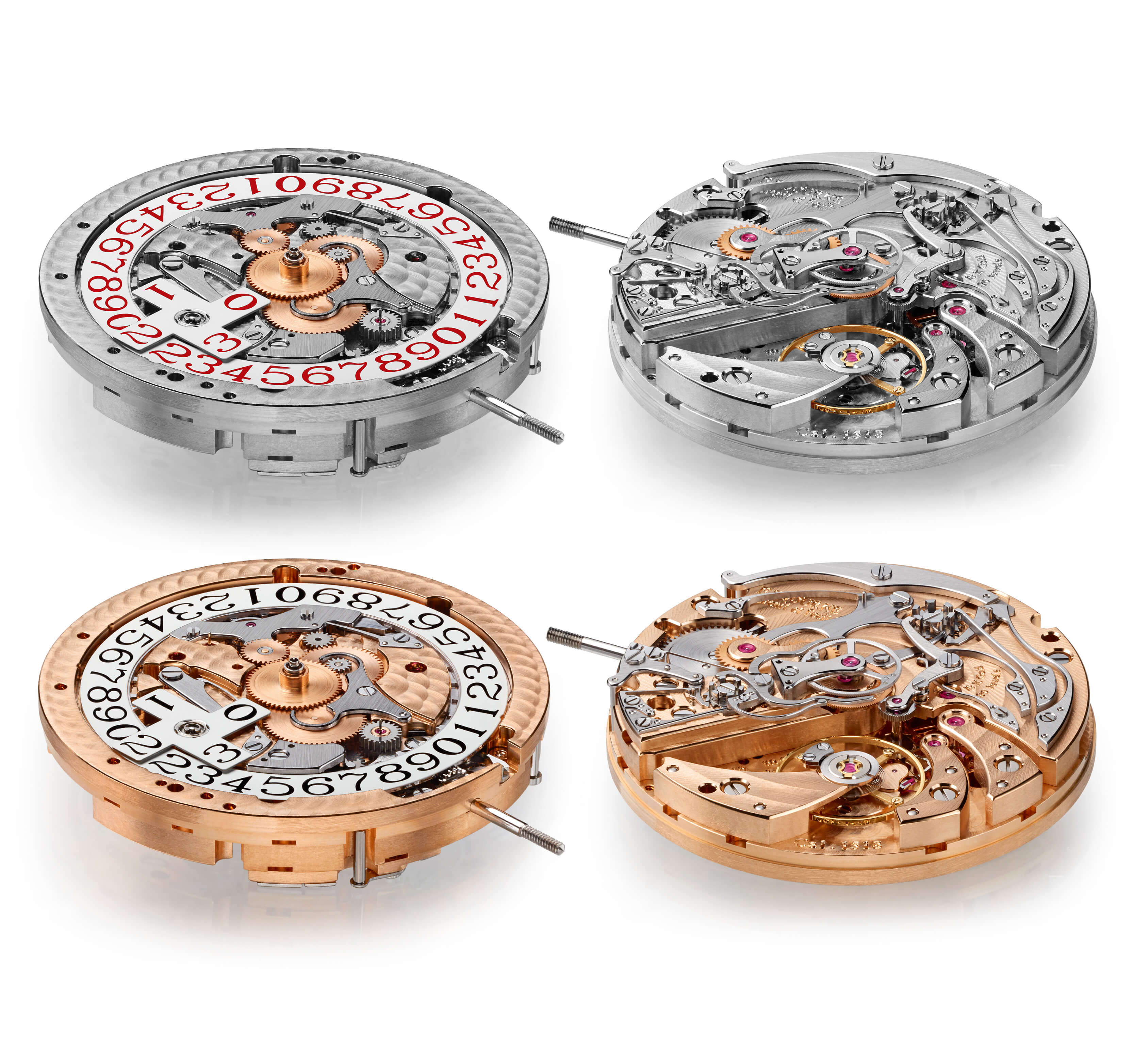

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Titanium case and bracelet
Diameter: 44 mm
Overall height: 12.1 mm
Dial: slate grey, in Aluminium alloy with applied luminescent numerals, counters in sapphire
Hands: big luminescent hands in Steel, matte rhodium plated Steel, ivory coloured Steel and small hands in red lacquered Titanium
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: Silver guilloché dial covered with Ruthenium, matte 5N Gold applied numerals, counters in whitened guilloché Silver
Hands: matte 5N gilt Steel, ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Platinum case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: Silver guilloché dial in blue-mauve colour, matte white Gold applied numerals, counters in whitened guilloché Silver
Hands: matte rhodium plated Steel , ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Titanium case and bracelet
Diameter: 44 mm
Overall height: 12.1 mm
Dial: yellow, in Aluminium alloy with applied luminescent numerals, counters in sapphire
Hands: big luminescent hands in Steel, black coloured Steel, ivory coloured Steel and small hands in red lacquered Titanium
Finishing
Titanium case and bracelet
Diameter: 44 mm
Overall height: 12.1 mm
Dial: yellow, in Aluminium alloy with applied luminescent numerals, counters in sapphire
Hands: big luminescent hands in Steel, black coloured Steel, ivory coloured Steel and small hands in red lacquered Titanium
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Titanium case and bracelet
Diameter: 44 mm
Overall height: 12.1 mm
Dial: slate grey, in Aluminium alloy with applied luminescent numerals, counters in sapphire
Hands: big luminescent hands in Steel, matte rhodium plated Steel, ivory coloured Steel and small hands in red lacquered Titanium
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: Silver guilloché dial covered with Ruthenium, matte 5N Gold applied numerals, counters in whitened guilloché Silver
Hands: matte 5N gilt Steel, ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Platinum case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: Silver guilloché dial in blue-mauve colour, matte white Gold applied numerals, counters in whitened guilloché Silver
Hands: matte rhodium plated Steel , ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
Find aboutique
Catalogue

CHRONOGRAPHE RATTRAPANTE - Ref. CMS/CM Calibre 1518 FP Journe FP Journe

Other views
F.P.Journe
F.P.Journe
F.P.Journe
Other views
F.P.Journe
F.P.Journe
F.P.Journe
Other views
F.P.Journe
F.P.Journe
F.P.Journe
Other views
F.P.Journe
F.P.Journe
F.P.Journe

About

THE LINESPORT COLLECTION BROADENS WITH THE NEW CHRONOGRAPHE RATTRAPANTE, AVAILABLE IN 4 VERSIONS: TWO IN TITANIUM GRADE 5, ONE IN 18K 6N GOLD AND ONE IN PLATINUM PT950.

THE CASE OF 44 MM DIAMETER AND 12.1 MM THICK ENCLOSES THE MONOPOUSSOIR SPLIT SECOND CHRONOGRAPH MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY FOR THE TITANIUM VERSION AND IN 18K ROSE GOLD FOR THE 18K 6N GOLD AND PLATINUM VERSIONS.

THIS CHRONOGRAPH FEATURES A POWER RESERVE OF 80 HOURS MAKING IT POSSIBLE TO EFFICIENTLY USE THE CHRONOGRAPH WITH THE RATTRAPANTE FUNCTION AFTER 2 DAYS AND A VERY LARGE DATE IN A WINDOW OF 5.20 X 2.80 MM PROVIDES AN INCREASED READABILITY. THE TACHYMETRIC BEZEL INLAID WITH CERAMIC AND THE NEW TYPOGRAPHIC NUMERAL ARE A REMINDER OF THE 2017 ONLY WATCH TIMEPIECE.

THE 4 VERSIONS HAVE DIFFERENT DIALS:
- FOR THE TITANIUM MODELS, A DIAL IN ALUMINUM ALLOY OF YELLOW OR SLATE GREY COLOUR WITH LUMINESCENT APPLIED NUMERALS, 2 CHRONOGRAPH COUNTERS ENGRAVED IN SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 81 GRAMS.
- FOR THE 6N GOLD MODEL, A SILVER GUILLOCHE DIAL COVERED WITH RUTHENIUM AND APPLIQUES NUMERALS IN MATTE 5N GOLD, 2 SILVER CHRONOGRAPH COUNTERS AND MATTE 5N GOLDEN HANDS.
- FOR THE PLATINUM MODEL, A BLUE-MAUVE COLOUR SILVER GUILLOCHE DIAL WITH APPLIQUES NUMERALS IN MATTE WHITE GOLD, 2 SILVER CHRONOGRAPH COUNTERS AND MATTE RHODIED HANDS.

THE PRECIOUS METAL BRACELETS ARE ASSORTED TO THEIR RESPECTIVE CASE. TWO NEW BRACELETS IN 18k 6N GOLD AND PLATINUM WITH MATTE HAMMERED FINISHING HAVE BEEN DEVELOPED. THE LINKS ATTACHED TO THE CASE ARE ALSO ARTICULATED TO ADAPT TO THE DIFFERENT WRIST SIZES WITH AN ADJUSTABLE FOLDING CLASP IN LENGTH OF APPROXIMATELY 5 MM.

A CROWN WITH 3 POSITIONS:
- POSITION 1: WINDING.
- POSITION 2: CORRECTION OF THE VERY LARGE DATE.
- POSITION 3: TIME SETTING.

THE PUSHER ARE MADE IN THE SAME METAL AS THE CASE:
- A PUSHER AT 2H FOR THE CHRONOGRAPH START, STOP AND BACK TO ZERO FUNCTIONS.
- A PUSHER AT 4H FOR THE RATTRAPANTE.

THIS CALIBRE 1518 WITH MANUAL WINDING, CONCEIVED BY F.P.JOURNE, IS AS USUAL ENTIRELY MADE IN OUR MANUFACTURE AND ASSEMBLED BY ONE OF OUR WATCHMAKERS. F.P.JOURNE PERPETUATES THE WATCHMAKING TRADITION AND MAINTAINS EXCLUSIVE CRAFTSMANSHIP SINCE EVERY EXPERIENCED WATCHMAKER PERFORMS ALL THE ASSEMBLY STAGES FROM BEGINNING TO END, A UNIQUE CASE IN THE PROFESSION.

INSPIRED BY THE CHRONOGRAPH MADE FOR ONLY WATCH 2017, THIS NEW MOVEMENT FEATURES A CHRONOGRAPH DIRECT GEARING WITH A ROCKING PINION AVOIDING THE JUMP OF THE HAND AT THE START. AN IMPORTANT DEVELOPMENT WAS REQUIRED TO INTEGRATE THE VERY LARGE DATE IN A TOTAL HEIGHT OF ONLY 6.80 MM, SIGNATURE OF THE F.P.JOURNE BRAND. THE MAGNIFICENT FINISHING AND DECORATIONS OF THE MOVEMENT VISIBLE THROUGH A TRANSPARENT SAPPHIRE BACK ARE ONE OF THE NUMEROUS UNDISPUTABLE QUALITIES OF THE F.P.JOURNE HAUTE HOROLOGY.

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.

  • About

    THE LINESPORT COLLECTION BROADENS WITH THE NEW CHRONOGRAPHE RATTRAPANTE, AVAILABLE IN 4 VERSIONS: TWO IN TITANIUM GRADE 5, ONE IN 18K 6N GOLD AND ONE IN PLATINUM PT950.

    THE CASE OF 44 MM DIAMETER AND 12.1 MM THICK ENCLOSES THE MONOPOUSSOIR SPLIT SECOND CHRONOGRAPH MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY FOR THE TITANIUM VERSION AND IN 18K ROSE GOLD FOR THE 18K 6N GOLD AND PLATINUM VERSIONS.

    THIS CHRONOGRAPH FEATURES A POWER RESERVE OF 80 HOURS MAKING IT POSSIBLE TO EFFICIENTLY USE THE CHRONOGRAPH WITH THE RATTRAPANTE FUNCTION AFTER 2 DAYS AND A VERY LARGE DATE IN A WINDOW OF 5.20 X 2.80 MM PROVIDES AN INCREASED READABILITY. THE TACHYMETRIC BEZEL INLAID WITH CERAMIC AND THE NEW TYPOGRAPHIC NUMERAL ARE A REMINDER OF THE 2017 ONLY WATCH TIMEPIECE.

    THE 4 VERSIONS HAVE DIFFERENT DIALS:
    - FOR THE TITANIUM MODELS, A DIAL IN ALUMINUM ALLOY OF YELLOW OR SLATE GREY COLOUR WITH LUMINESCENT APPLIED NUMERALS, 2 CHRONOGRAPH COUNTERS ENGRAVED IN SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 81 GRAMS.
    - FOR THE 6N GOLD MODEL, A SILVER GUILLOCHE DIAL COVERED WITH RUTHENIUM AND APPLIQUES NUMERALS IN MATTE 5N GOLD, 2 SILVER CHRONOGRAPH COUNTERS AND MATTE 5N GOLDEN HANDS.
    - FOR THE PLATINUM MODEL, A BLUE-MAUVE COLOUR SILVER GUILLOCHE DIAL WITH APPLIQUES NUMERALS IN MATTE WHITE GOLD, 2 SILVER CHRONOGRAPH COUNTERS AND MATTE RHODIED HANDS.

    THE PRECIOUS METAL BRACELETS ARE ASSORTED TO THEIR RESPECTIVE CASE. TWO NEW BRACELETS IN 18k 6N GOLD AND PLATINUM WITH MATTE HAMMERED FINISHING HAVE BEEN DEVELOPED. THE LINKS ATTACHED TO THE CASE ARE ALSO ARTICULATED TO ADAPT TO THE DIFFERENT WRIST SIZES WITH AN ADJUSTABLE FOLDING CLASP IN LENGTH OF APPROXIMATELY 5 MM.

    A CROWN WITH 3 POSITIONS:
    - POSITION 1: WINDING.
    - POSITION 2: CORRECTION OF THE VERY LARGE DATE.
    - POSITION 3: TIME SETTING.

    THE PUSHER ARE MADE IN THE SAME METAL AS THE CASE:
    - A PUSHER AT 2H FOR THE CHRONOGRAPH START, STOP AND BACK TO ZERO FUNCTIONS.
    - A PUSHER AT 4H FOR THE RATTRAPANTE.

    THIS CALIBRE 1518 WITH MANUAL WINDING, CONCEIVED BY F.P.JOURNE, IS AS USUAL ENTIRELY MADE IN OUR MANUFACTURE AND ASSEMBLED BY ONE OF OUR WATCHMAKERS. F.P.JOURNE PERPETUATES THE WATCHMAKING TRADITION AND MAINTAINS EXCLUSIVE CRAFTSMANSHIP SINCE EVERY EXPERIENCED WATCHMAKER PERFORMS ALL THE ASSEMBLY STAGES FROM BEGINNING TO END, A UNIQUE CASE IN THE PROFESSION.

    INSPIRED BY THE CHRONOGRAPH MADE FOR ONLY WATCH 2017, THIS NEW MOVEMENT FEATURES A CHRONOGRAPH DIRECT GEARING WITH A ROCKING PINION AVOIDING THE JUMP OF THE HAND AT THE START. AN IMPORTANT DEVELOPMENT WAS REQUIRED TO INTEGRATE THE VERY LARGE DATE IN A TOTAL HEIGHT OF ONLY 6.80 MM, SIGNATURE OF THE F.P.JOURNE BRAND. THE MAGNIFICENT FINISHING AND DECORATIONS OF THE MOVEMENT VISIBLE THROUGH A TRANSPARENT SAPPHIRE BACK ARE ONE OF THE NUMEROUS UNDISPUTABLE QUALITIES OF THE F.P.JOURNE HAUTE HOROLOGY.

  • Technical description

    Technical Specifications

    Movement :

      In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
      Mechanical with manual winding
      38 turns of crown

    Dimensions of the Movement :

      Overall diameter: 33.60 mm
      Casing-up diameter: 33.20 mm
      Overall height: 6.80 mm
      Height of hands: 2.20 mm
      Diameter of stem thread: S1.20 mm

    Balance :

      In-line lever escapement, 15-tooth escape wheel
      Chronometric with four adjustable inertia weights
      Anachron balance spring
      Mobile stud holders
      Free-sprung balance
      Nivatronic laser-welded to collet
      Pinned GE stud
      Frequency: 21,600 v/h (3Hz)
      Inertia: 10.10 mg*cm2
      Angle of lift: 52°

    Main Characteristics :

      Crown with 3 positions
      Position 1: winding
      Position 2: correction of the date
      Position 3: time setting
      Pusher chronograph to start, stop and back to zero at 2h
      Pusher split-second at 4h

    Power reserve :

      80 ± 2 hours without the chronograph

    Amplitude :

      0h dial up: 300°
      24h dial up: 260°

    Finishing :

      Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

    Number of Parts :

      Movement without dial: 285
      Cased up with strap: 453
      Jewels: 29

    Movement :

      In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
      Mechanical with manual winding
      38 turns of crown

    Dimensions of the Movement :

      Overall diameter: 33.60 mm
      Casing-up diameter: 33.20 mm
      Overall height: 6.80 mm
      Height of hands: 2.20 mm
      Diameter of stem thread: S1.20 mm

    Balance :

      In-line lever escapement, 15-tooth escape wheel
      Chronometric with four adjustable inertia weights
      Anachron balance spring
      Mobile stud holders
      Free-sprung balance
      Nivatronic laser-welded to collet
      Pinned GE stud
      Frequency: 21,600 v/h (3Hz)
      Inertia: 10.10 mg*cm2
      Angle of lift: 52°

    Main Characteristics :

      Crown with 3 positions
      Position 1: winding
      Position 2: correction of the date
      Position 3: time setting
      Pusher chronograph to start, stop and back to zero at 2h
      Pusher split-second at 4h

    Power reserve :

      80 ± 2 hours without the chronograph

    Amplitude :

      0h dial up: 300°
      24h dial up: 260°

    Finishing :

      Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

    Number of Parts :

      Movement without dial: 285
      Cased up with strap: 453
      Jewels: 29

    At the heart of the movement
    At the heart of the movement
    fpjourne

    Technical description


    The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

    Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

    The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
    fpjourne

    Technical description


    The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

    Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

    The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.

Technical Specifications

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Movement :

    In 18K rose Gold for the Platinum PT 950 and 18K 6N Gold models / In Aluminium alloy for the Titanium grade 5 models
    Mechanical with manual winding
    38 turns of crown

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Power reserve :

    80 ± 2 hours without the chronograph

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
