Calibre 1408 https://www.fpjourne.com/en/collection/black-label-collection/repetition-souveraine-black-label FP Journe https://www.fpjourne.com/en FP Journe
Diameter: 40 mm
Overall height: 8.5 mm
Dial: blackened guilloché Silver
Hands: rhodium plated Steel
Technical Specifications
Minute repeater strikes on demand
Time adjustment via crown in position 2
Repeater activated by single slide
Linear escapement with 15 tooth escape wheel
Two position crown
Two mainspring barrels in parallel
Four inertia weights
Anachron flat balance spring
Central hours and minutes
Sub-second at 7h30
Power reserve at 3h00
View to striking hammers
Stainless Steel
Diameter: 40.00 mm
Height: 8.50 mm
Calibre No.1408
Movement in 18 K rose gold
Manually wound by 38 turns
- Casing-up diameter : 31.60 mm
- Overall height : 4.50 mm
- Height of winding system : 2.38 mm
- Rubis : 33
Four inertia weights
Anachron free-sprung flat balance spring
Mobile stud holders
Free sprung
Laser soldered balance spring stud
Pinned GE stud
21'600 Alt/h (3Hz)
10.10 mg/cm2
52°
0h dial up: 320°
24h dial up: 280°
56 ± 2 hours
Circular grained baseplate
Straigt waves on bridges
3D engraving
Screw heads polished and bevelled
Pegs with polished rounded ends
Steel components hand polished and decorated
Movement without dial: 312
Cased-up on leather strap: 338
Minute repeater strikes on demand
Time adjustment via crown in position 2
Repeater activated by single slide
Linear escapement with 15 tooth escape wheel
Two position crown
Two mainspring barrels in parallel
Four inertia weights
Anachron flat balance spring
Central hours and minutes
Sub-second at 7h30
Power reserve at 3h00
View to striking hammers
Stainless Steel
Diameter: 40.00 mm
Height: 8.50 mm
Calibre No.1408
Movement in 18 K rose gold
Manually wound by 38 turns
- Casing-up diameter : 31.60 mm
- Overall height : 4.50 mm
- Height of winding system : 2.38 mm
- Rubis : 33
Four inertia weights
Anachron free-sprung flat balance spring
Mobile stud holders
Free sprung
Laser soldered balance spring stud
Pinned GE stud
21'600 Alt/h (3Hz)
10.10 mg/cm2
52°
0h dial up: 320°
24h dial up: 280°
56 ± 2 hours
Circular grained baseplate
Straigt waves on bridges
3D engraving
Screw heads polished and bevelled
Pegs with polished rounded ends
Steel components hand polished and decorated
Movement without dial: 312
Cased-up on leather strap: 338
Technical description
Unique patented Repetition Souveraine mechanism
Two key technical developments have enabled F.P.Journe to construct a sweet sounding ultra-slim repeater movement. The first is the flat gong, first seen on the F.P.Journe Grande Sonnerie, which produces a louder and clearer sound than traditional gongs. And because the gong is mounted under the dial, instead of around the movement, it allows more room for the movement.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
Unlike traditional minute repeaters, the hours and minutes of the Repetition Souveraine do share the same hammer; so a pause is automatically inserted between hour and minute chimes when there are no quarters. The quarters sound with classic double chimes. An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
Technical description
Unique patented Repetition Souveraine mechanism
Two key technical developments have enabled F.P.Journe to construct a sweet sounding ultra-slim repeater movement. The first is the flat gong, first seen on the F.P.Journe Grande Sonnerie, which produces a louder and clearer sound than traditional gongs. And because the gong is mounted under the dial, instead of around the movement, it allows more room for the movement.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
Unlike traditional minute repeaters, the hours and minutes of the Repetition Souveraine do share the same hammer; so a pause is automatically inserted between hour and minute chimes when there are no quarters. The quarters sound with classic double chimes. An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
Diameter: 40 mm
Overall height: 8.5 mm
Dial: blackened guilloché Silver
Hands: rhodium plated Steel
Diameter: 40 mm
Overall height: 8.5 mm
Dial: blackened guilloché Silver
Hands: rhodium plated Steel
Technical Specifications
Minute repeater strikes on demand
Time adjustment via crown in position 2
Repeater activated by single slide
Linear escapement with 15 tooth escape wheel
Two position crown
Two mainspring barrels in parallel
Four inertia weights
Anachron flat balance spring
Central hours and minutes
Sub-second at 7h30
Power reserve at 3h00
View to striking hammers
Stainless Steel
Diameter: 40.00 mm
Height: 8.50 mm
Calibre No.1408
Movement in 18 K rose gold
Manually wound by 38 turns
- Casing-up diameter : 31.60 mm
- Overall height : 4.50 mm
- Height of winding system : 2.38 mm
- Rubis : 33
Four inertia weights
Anachron free-sprung flat balance spring
Mobile stud holders
Free sprung
Laser soldered balance spring stud
Pinned GE stud
21'600 Alt/h (3Hz)
10.10 mg/cm2
52°
0h dial up: 320°
24h dial up: 280°
56 ± 2 hours
Circular grained baseplate
Straigt waves on bridges
3D engraving
Screw heads polished and bevelled
Pegs with polished rounded ends
Steel components hand polished and decorated
Movement without dial: 312
Cased-up on leather strap: 338
Minute repeater strikes on demand
Time adjustment via crown in position 2
Repeater activated by single slide
Linear escapement with 15 tooth escape wheel
Two position crown
Two mainspring barrels in parallel
Four inertia weights
Anachron flat balance spring
Central hours and minutes
Sub-second at 7h30
Power reserve at 3h00
View to striking hammers
Stainless Steel
Diameter: 40.00 mm
Height: 8.50 mm
Calibre No.1408
Movement in 18 K rose gold
Manually wound by 38 turns
- Casing-up diameter : 31.60 mm
- Overall height : 4.50 mm
- Height of winding system : 2.38 mm
- Rubis : 33
Four inertia weights
Anachron free-sprung flat balance spring
Mobile stud holders
Free sprung
Laser soldered balance spring stud
Pinned GE stud
21'600 Alt/h (3Hz)
10.10 mg/cm2
52°
0h dial up: 320°
24h dial up: 280°
56 ± 2 hours
Circular grained baseplate
Straigt waves on bridges
3D engraving
Screw heads polished and bevelled
Pegs with polished rounded ends
Steel components hand polished and decorated
Movement without dial: 312
Cased-up on leather strap: 338
Technical description
Unique patented Repetition Souveraine mechanism
Two key technical developments have enabled F.P.Journe to construct a sweet sounding ultra-slim repeater movement. The first is the flat gong, first seen on the F.P.Journe Grande Sonnerie, which produces a louder and clearer sound than traditional gongs. And because the gong is mounted under the dial, instead of around the movement, it allows more room for the movement.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
Unlike traditional minute repeaters, the hours and minutes of the Repetition Souveraine do share the same hammer; so a pause is automatically inserted between hour and minute chimes when there are no quarters. The quarters sound with classic double chimes. An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
Technical description
Unique patented Repetition Souveraine mechanism
Two key technical developments have enabled F.P.Journe to construct a sweet sounding ultra-slim repeater movement. The first is the flat gong, first seen on the F.P.Journe Grande Sonnerie, which produces a louder and clearer sound than traditional gongs. And because the gong is mounted under the dial, instead of around the movement, it allows more room for the movement.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
Unlike traditional minute repeaters, the hours and minutes of the Repetition Souveraine do share the same hammer; so a pause is automatically inserted between hour and minute chimes when there are no quarters. The quarters sound with classic double chimes. An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
About
WITH A LIMITED PRODUCTION OF ABOUT 900 TIMEPIECES PER YEAR, F.P.JOURNE WANTED TO OFFER AN EVEN MORE EXCLUSIVE TIMEKEEPER THAT WOULD BE AVAILABLE ONLY FOR OWNERS OF AN F.P.JOURNE WATCH. WITH A CASE MADE IN PLATINUM, THE MOST PRECIOUS METAL, F.P.JOURNE HAS CREATED A DISTINGUISHED BLACK DIAL THAT PERSONALIZES EVEN FURTHER THE ELEGANCE OF THE BRAND WATCHES. THE BLACK LABEL COLLECTION WAS BORN.
THE BLACK LABEL COLLECTION IS AVAILABLE ONLY IN THE F.P.JOURNE BOUTIQUES AND ESPACES.
An ultra-slim and extremely light Minute Repeater
After the grande sonnerie, the minute repeater is the most complex and sophisticated of horological complications, one that demands the utmost, both technical and artistic, virtuosity from the watchmakers in charge of the assembling. An original construction was necessary to realize this ultra-slim movement of barely 4.50 mm thick.
By looking at it, one would never guess the complicated mechanism hidden behind it. The simple aspect of its silver guilloché dial, identical to that of the Chronomètre Souverain, hardly lets foresee the discrete window placed between 9 and 10 o’clock. It features the hammers striking the gongs at the hour, the quarters and the minutes, which can be activated by pressing a delicate indented slide on the left side of the case. This redevelopment has merited the application of two patents.
Its ultra-flat movement in 18K Gold with its case in Steel provide an astonishing lightness to the watch for a weight of only 69.6 grams, strap included. It makes the Repetition Souveraine one of the lightest complications in the world.
For his striking watches, F.P.Journe has exceptionally abandoned precious metals such as gold and platinum for a noble cause: to ensure the best possible striking tone that the use of the crystalline structure of steel makes optimal.
Two key technical developments have enabled François-Paul Journe to construct a sweet sounding ultra-slim repeater movement.
The first is the flat gong, first seen on the F.P.Journe Sonnerie Souveraine, which produces a louder and clearer sound than traditional gongs.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
The incomparable style of François-Paul Journe has sometimes been copied, but his highly inventive technique is far more difficult to duplicate. With that in mind, after completing his majestic Sonnerie Souveraine, a watch rating 10/10 on the scale of complications, François-Paul Journe decided to follow up with yet another incredibly complex timepiece, the first ultra-slim Minute Repeater.
After the grande sonnerie, the minute repeater is the most complex and sophisticated of horological complication, one that demands the very utmost in both technical and artistic virtuosity.
To date, the oldest known watch with répétition minutes was produced around 1710 in Friedberg, Germany. This invention made it possible to tell the time during the night by activating a pusher on the case. When activated by the pusher, the complication "tells" the time by causing two hammers to strike gongs which sound the hours, the quarters and the minutes.
The key goal for the creation of the Repetition Souveraine was to create a minute repeater that would leave an imprint in the history of horological science.
The minute repeater mechanism had to be reinvented in a way which enables strong crystal clear tones to emanate from a seemingly impossibly svelte movement of barely 4.50 mm, more reminiscent of a simple hand wind calibre than a highly intricate and complex complication.
This redevelopment has merited the application of two patents.
Unique patented Repetition Souveraine mechanism
Two key technical developments have enabled François-Paul Journe to construct a sweet sounding ultra-slim repeater movement. The first is the flat gong, first seen on the F.P.Journe Sonnerie Souveraine, which produces a louder and clearer sound than traditional gongs. And because the gong is mounted under the dial, instead of around the movement, it allows more room for the movement.
The second is an innovative system of striking racks and strike selection mechanisms which take up much less space than conventional strike mechanisms.
Unlike traditional minute repeaters, the hours and minutes of the Repetition Souveraine do share the same hammer; so a pause is automatically inserted between hour and minute chimes when there are no quarters. The quarters sound with classic double chimes. An inertia regulator controls the speed of the chimes, thus eliminating the background noise usually associated with traditional air regulators.
Case
There is one metal that resonates sound above all others and that metal is steel. In his typical no-compromise style, François-Paul Journe places performance and function above all. So it is only natural that, as with the Sonnerie Souveraine, the dulcet tones of the Repetition Souveraine reverberate from a stainless steel case.

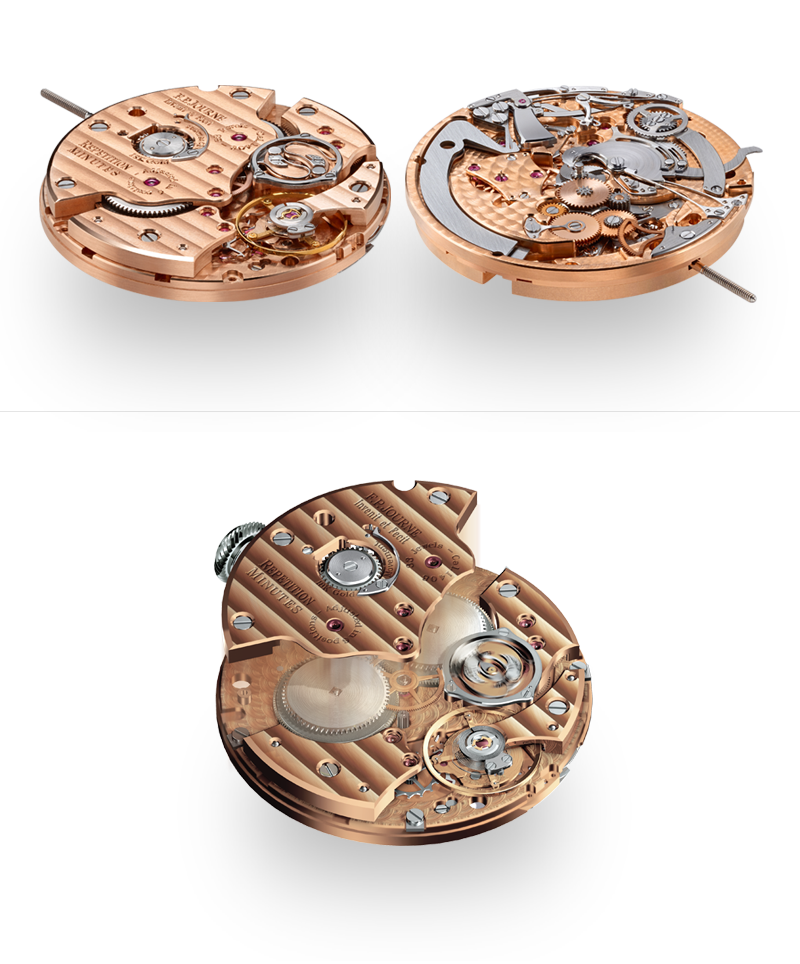

Movement
The manually wound movement, with base-plates and bridges in 18 carat rose gold, oscillates at 21,600v/h. Twin barrels work in parallel to deliver stable power for most of their 56-hour indicated reserve. The F.P.Journe free-sprung balance, with variable inertia adjustment on four opposing weights, is dynamically adjusted in six positions.
Many more components in very little extra space.
While the Repetition Souveraine calibre shares its technical heritage with the Chronomètre Souverain, the sheer complexity of the minute repeater demands nearly twice the number of components. Despite this, François-Paul Journe has managed to craft a movement with a height of just 4.50 mm.
