Limited Series of 69 pieces
Jumping hours and minutes indication by aperture, manual winding
Platinum Flat Tortue® case
Dimensions: 41 x 34 mm
Overall height: 6.7 mm
Dial: slate grey, sapphire disc with aperture, outer dial screwed Steel elements
Platinum folding clasp

Calibre 1504

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

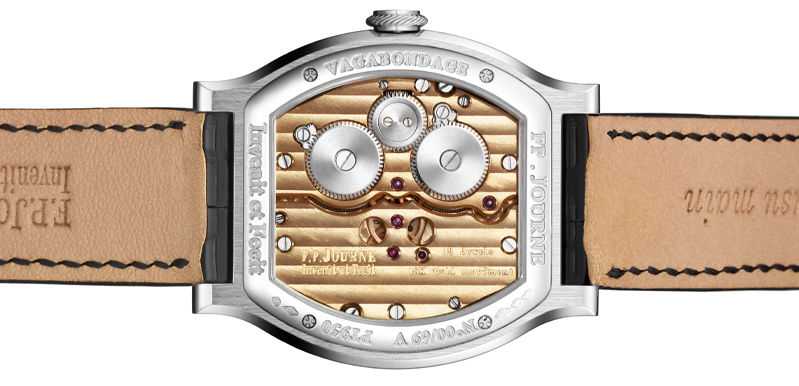

At the heart of the movement

Technical description

Limited Series of 10 pieces
Jumping hours and minutes indication by aperture, manual winding
Platinum Flat Tortue® case set with 46 baguette diamonds ~ 6.50 carats
Dimensions: 41 x 34 mm
Overall height: 6.7 mm
Dial: slate grey, sapphire disc with aperture, outer dial screwed Steel elements
Platinum folding clasp set with 18 baguette diamonds ~ 0.95 carat

Calibre 1504

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

At the heart of the movement

Technical description

Finishing

Calibre 1504

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

At the heart of the movement

Technical description

Calibre 1504

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

At the heart of the movement

Technical description

Find aboutique
Catalogue

VAGABONDAGE - Ref. V Calibre 1504 https://www.fpjourne.com/en/collection/limited-series/vagabondage FP Journe https://www.fpjourne.com/en FP Journe

Other views

About

This model was produced between 2004 and 2006.

The Vagabondage was produced between 2004 and 2006 in a Limited Edition of 69 pieces in Platinum, and 10 additional pieces also in Platinum set with baguette diamonds. It features a Platinum case in “Tortue plate” shape (flat turtle) (model registered) and a movement shaped to case in 18K rose Gold.

This model is called Vagabondage because of its wandering system of digital time display and the different case shape to F.P.Journe traditional round case.

F.P. Journe has created the Vagabondage Limited Series with a Flat Tortue shaped Platinum case after having crafted 3 pieces in white gold, yellow gold and 6N gold, without signature on the dial and with brass movement for the 30th Anniversary of Antiquorum in 2004, profits going to the ICM Foundation.

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

At the heart of the movement

Technical description

About

This model was produced between 2004 and 2006.

The Vagabondage was produced between 2004 and 2006 in a Limited Edition of 69 pieces in Platinum, and 10 additional pieces also in Platinum set with baguette diamonds. It features a Platinum case in “Tortue plate” shape (flat turtle) (model registered) and a movement shaped to case in 18K rose Gold.

This model is called Vagabondage because of its wandering system of digital time display and the different case shape to F.P.Journe traditional round case.

F.P. Journe has created the Vagabondage Limited Series with a Flat Tortue shaped Platinum case after having crafted 3 pieces in white gold, yellow gold and 6N gold, without signature on the dial and with brass movement for the 30th Anniversary of Antiquorum in 2004, profits going to the ICM Foundation.
Technical description
Technical Specifications
Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels
Dimensions :

Overall dimensions : 27.70 x 27.90 mm

Casing-up dimensions : 27.10 x 27.30 mm

Overall height : 4.40 mm

Height of winding system : 2.39 mm

Diameter of stem thread : S0.90 mm
Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud
Frequency :

21,600 Alt / h, (3Hz)
Amplitude :

12h dial flat: > 280°
12h dial up: > 250°
Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels
Power reserve :

48 hours
Indication :

Indication of hours in a mobile window which position indicates the minutes
Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled
Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels
Dimensions :

Overall dimensions : 27.70 x 27.90 mm

Casing-up dimensions : 27.10 x 27.30 mm

Overall height : 4.40 mm

Height of winding system : 2.39 mm

Diameter of stem thread : S0.90 mm
Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud
Frequency :

21,600 Alt / h, (3Hz)
Amplitude :

12h dial flat: > 280°
12h dial up: > 250°
Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels
Power reserve :

48 hours
Indication :

Indication of hours in a mobile window which position indicates the minutes
Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled
At the heart of the movement

At the heart of the movement

Technical description

Technical description

Technical Specifications

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

Movement :

Calibre 1504 in 18K rose Gold
Manual winding
19 jewels

Dimensions :

Overall dimensions : 27.70 x 27.90 mm
Casing-up dimensions : 27.10 x 27.30 mm
Overall height : 4.40 mm
Height of winding system : 2.39 mm
Diameter of stem thread : S0.90 mm

Balance :

Central annular balance with 14 screws
Flat Anachron microflamed spring
Mobile stud holders
Nivatronic laser-welded to collet
Pinned GE stud

Frequency :

21,600 Alt / h, (3Hz)

Amplitude :

12h dial flat: > 280°
12h dial up: > 250°

Characteristics :

Straight line lever escapement 15 teeth
Two position crown
Two barrels

Power reserve :

48 hours

Indication :

Indication of hours in a mobile window which position indicates the minutes

Decoration :

High quality
Partly circular grained base plate with Geneva waves
Polished screw heads, chamfered slots
Pegs with polished rounded ends
Steel components polished and bevelled

At the heart of the movement
