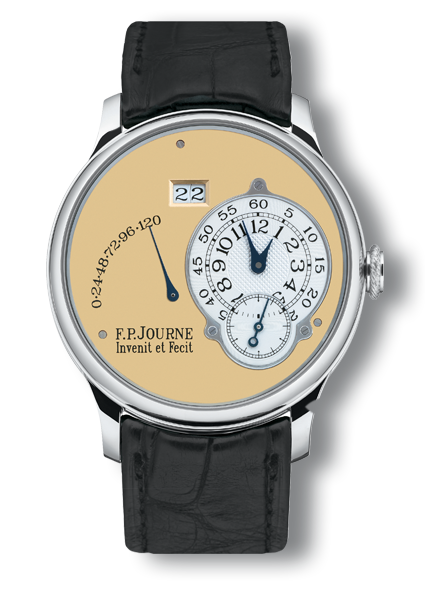

Octa Réserve de Marche
Octa Réserve de Marche - Ref. OR
Discover
OCTA Divine 36 mm
OCTA Divine 36 mm - Ref. OD
Discover

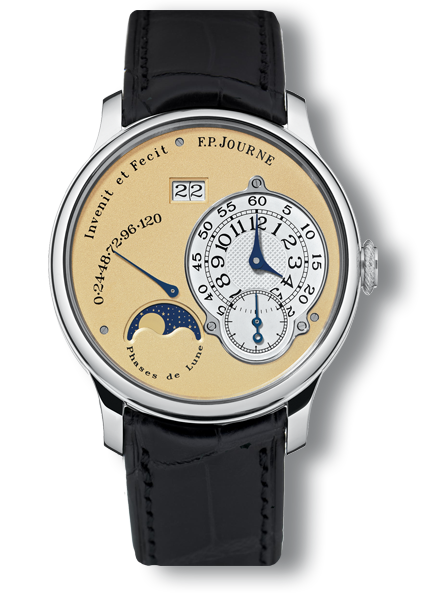

OCTA Lune
OCTA Lune - Ref. OL
Discover

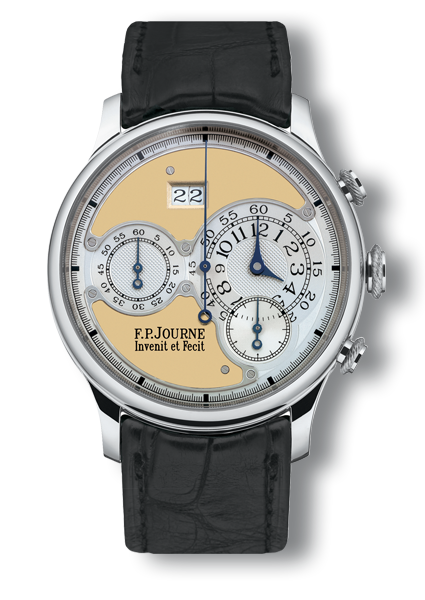

Octa Chronographe
Octa Chronographe - Ref. OC
Discover
Octa Calendrier
Octa Calendrier - Ref. OQ
Discover

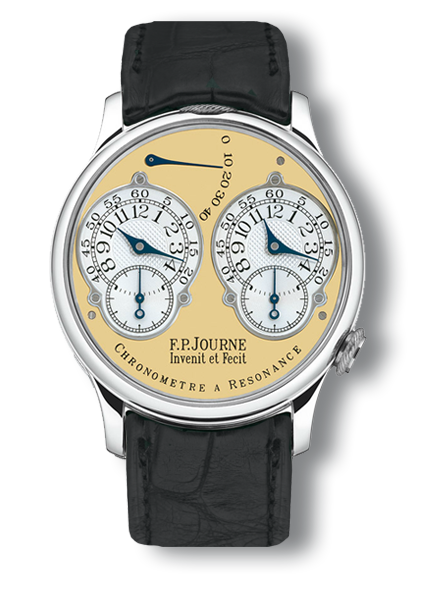

Chronomètre à Résonance
Chronomètre à Résonance - Ref. R
Discover

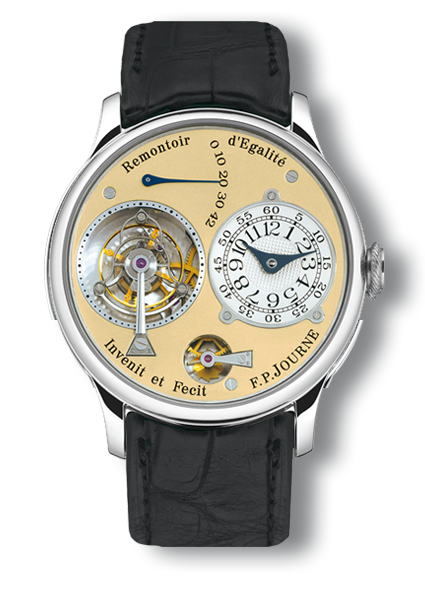

Tourbillon Souverain
Tourbillon Souverain - Ref. T
Discover

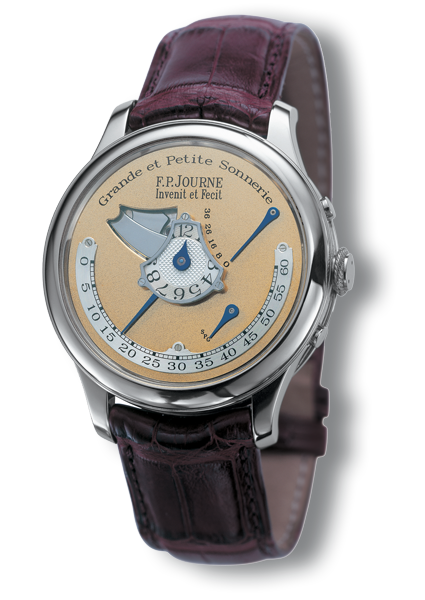

Sonnerie Souveraine
Sonnerie Souveraine - Ref. GS
Discover
Brass Collection
Octa Réserve de Marche
OCTA Divine 36 mm
OCTA Lune
Octa Chronographe
Octa Calendrier
Chronomètre à Résonance
Tourbillon Souverain
Sonnerie Souveraine

OCTA CALENDRIER - Ref. OQ CALIBRE 1300 FP Journe FP Journe

Platinum case
Diameter: 38 mm
Overall height: 10.6 mm
Dial: 18K yellow Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Platine
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or 6N 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Platine
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or gris 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Or 6N 18 ct.
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or 6N 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Or 6N 18 ct.
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or gris 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Platinum case
Diameter: 38 mm
Overall height: 10.6 mm
Dial: 18K yellow Gold and whitened guilloché Silver
Hands: blued Steel
Finishing
Platinum case
Diameter: 38 mm
Overall height: 10.6 mm
Dial: 18K yellow Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Platine
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or 6N 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Platine
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or gris 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Or 6N 18 ct.
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or 6N 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Boîtier en Or 6N 18 ct.
Diamètre : 38 mm
Epaisseur totale : 10.6 mm
Cadran : Or gris 18 ct. et Argent guilloché blanchi
Aiguilles : Acier bleui
CALIBRE 1300

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


Find aboutique
Catalogue

OCTA CALENDRIER - Ref. OQ CALIBRE 1300 FP Journe FP Journe

Other views
F.P.Journe
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe

About

This watch was produced between 2003 and 2005

World Premiere :
The Octa Calendrier is the first wristwatch integrating an annual calendar with a large date, and to feature a power reserve of more than 120 hours.

The annual calendar is the third complication to be integrated in the automatic Octa calibre. A calibre recognized as the automatic movement to feature a power reserve of over five days with a very high degree of precision - even when the watch is not worn! The originality of each complication in the Octa collection is the identical baseplate used for each model.

François-Paul Journe has managed to integrate a sizable complication - a retrograde annual calendar - while maintaining the dimensions of the standard movement of only 30 mm in diameter and 5,7 mm high.

The annual calendar indicates the date in two windows and the date advances automatically for months with 29, 30 and 31 days. In non-leap years (three years out of four) the date is advanced manually from the 28th to the 29th of February by a simple turn of the crown. The date then passes automatically from February 29 to March 1.

Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description


  • fpjourne
    Prix Special du Jury 2002

  • About

    This watch was produced between 2003 and 2005

    World Premiere :
    The Octa Calendrier is the first wristwatch integrating an annual calendar with a large date, and to feature a power reserve of more than 120 hours.

    The annual calendar is the third complication to be integrated in the automatic Octa calibre. A calibre recognized as the automatic movement to feature a power reserve of over five days with a very high degree of precision - even when the watch is not worn! The originality of each complication in the Octa collection is the identical baseplate used for each model.

    François-Paul Journe has managed to integrate a sizable complication - a retrograde annual calendar - while maintaining the dimensions of the standard movement of only 30 mm in diameter and 5,7 mm high.

    The annual calendar indicates the date in two windows and the date advances automatically for months with 29, 30 and 31 days. In non-leap years (three years out of four) the date is advanced manually from the 28th to the 29th of February by a simple turn of the crown. The date then passes automatically from February 29 to March 1.

  • Technical description

    Technical Specifications

    Indications :

      Off centre hours and minutes.
      small seconds at 4:30.
      Retrograde central date.
      Month and day in windows.

    Dimensions :
    • Overall diameter of mvt : 30.80 mm
    • Casing-up diameter of mvt : 30.40 mm
    • Overall height of mvt : 5.70 mm
    • Height of winding system : 3.00 mm
    • Diameter of stem thread : S0.90 mm
    Caracteristics :

      In-line lever escapement, 15 tooth wheel.
      Balance with 4 inertia weights.
      Flat Anachron microflamed spring.
      Mobile stud holder.
      Free sprung balance.
      Nivatronic laser welded to the collet.
      Pinned GE stud.
      3 positions crown.
      Slipping mainspring.
      Off-centre winding rotor.

    Auto winding :

      274 anti clockwise revolutions / 24 hours.

    Main features :

      Bi-directional automatic winding.
      Instantaneous retrograde date change.
      Date setting by turning crown
      in opposite ways (position 2).
      Time setting with crown (position 3).

    Frequency :

      21600 VPH, 3 Hz

    Balance :
    • Inertia : 10.10 mgcm2
    • Angle of lift : 52°
    Amplitude :
    • 0h dial up : 280°
    • 120h dial up : 220°
    Power reserve :

      160 +/- 12 hours

    Number of jewels :

      31

    Finishing :

      High grade.
      Circular stripes on bridges.
      Baseplate partly circular grained.
      Gilt engraving.
      Polish screw heads with
      chamfered slots.
      Pegs with polished rounded ends.

    Number of components :
    • Movement : 223
    • Cased on leather strap : 260
    Indications :

      Off centre hours and minutes.
      small seconds at 4:30.
      Retrograde central date.
      Month and day in windows.

    Dimensions :
    • Overall diameter of mvt : 30.80 mm
    • Casing-up diameter of mvt : 30.40 mm
    • Overall height of mvt : 5.70 mm
    • Height of winding system : 3.00 mm
    • Diameter of stem thread : S0.90 mm
    Caracteristics :

      In-line lever escapement, 15 tooth wheel.
      Balance with 4 inertia weights.
      Flat Anachron microflamed spring.
      Mobile stud holder.
      Free sprung balance.
      Nivatronic laser welded to the collet.
      Pinned GE stud.
      3 positions crown.
      Slipping mainspring.
      Off-centre winding rotor.

    Auto winding :

      274 anti clockwise revolutions / 24 hours.

    Main features :

      Bi-directional automatic winding.
      Instantaneous retrograde date change.
      Date setting by turning crown
      in opposite ways (position 2).
      Time setting with crown (position 3).

    Frequency :

      21600 VPH, 3 Hz

    Balance :
    • Inertia : 10.10 mgcm2
    • Angle of lift : 52°
    Amplitude :
    • 0h dial up : 280°
    • 120h dial up : 220°
    Power reserve :

      160 +/- 12 hours

    Number of jewels :

      31

    Finishing :

      High grade.
      Circular stripes on bridges.
      Baseplate partly circular grained.
      Gilt engraving.
      Polish screw heads with
      chamfered slots.
      Pegs with polished rounded ends.

    Number of components :
    • Movement : 223
    • Cased on leather strap : 260
    At the heart of the movement
    At the heart of the movement
    fpjourne

    Technical description


    fpjourne

    Technical description


Technical Specifications

Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
Indications :

    Off centre hours and minutes.
    small seconds at 4:30.
    Retrograde central date.
    Month and day in windows.

Dimensions :
  • Overall diameter of mvt : 30.80 mm
  • Casing-up diameter of mvt : 30.40 mm
  • Overall height of mvt : 5.70 mm
  • Height of winding system : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Caracteristics :

    In-line lever escapement, 15 tooth wheel.
    Balance with 4 inertia weights.
    Flat Anachron microflamed spring.
    Mobile stud holder.
    Free sprung balance.
    Nivatronic laser welded to the collet.
    Pinned GE stud.
    3 positions crown.
    Slipping mainspring.
    Off-centre winding rotor.

Auto winding :

    274 anti clockwise revolutions / 24 hours.

Main features :

    Bi-directional automatic winding.
    Instantaneous retrograde date change.
    Date setting by turning crown
    in opposite ways (position 2).
    Time setting with crown (position 3).

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 10.10 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 120h dial up : 220°
Power reserve :

    160 +/- 12 hours

Number of jewels :

    31

Finishing :

    High grade.
    Circular stripes on bridges.
    Baseplate partly circular grained.
    Gilt engraving.
    Polish screw heads with
    chamfered slots.
    Pegs with polished rounded ends.

Number of components :
  • Movement : 223
  • Cased on leather strap : 260
At the heart of the movement
At the heart of the movement
fpjourne

Technical description


fpjourne

Technical description
