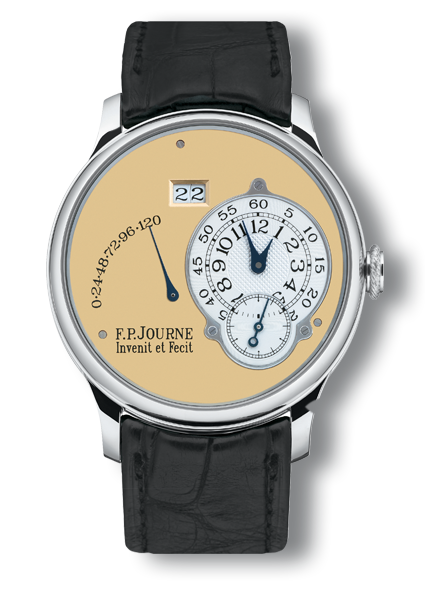

Octa Réserve de Marche

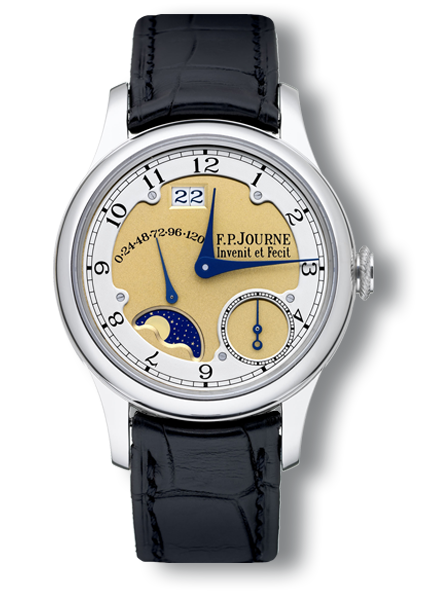

OCTA Divine 36 mm

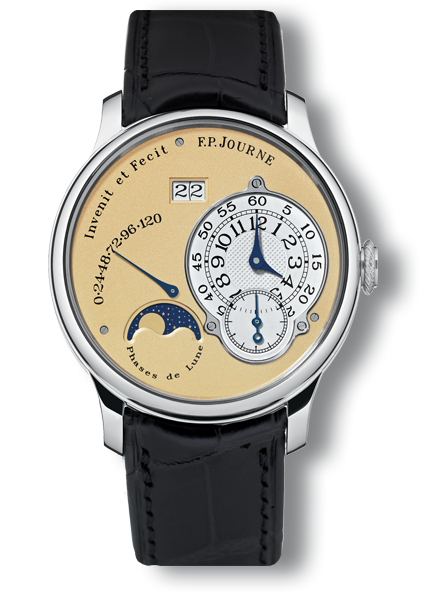

OCTA Lune

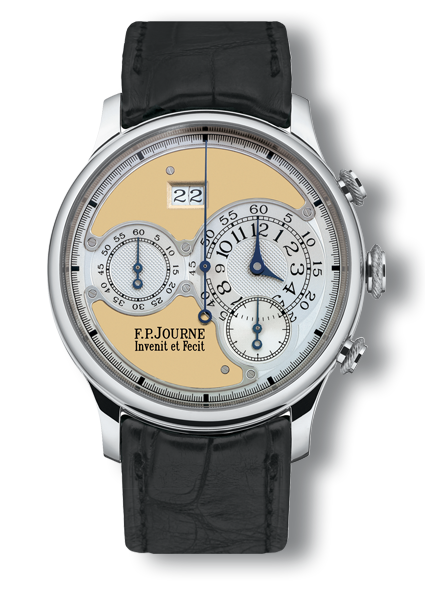

Octa Chronographe
Octa Calendrier

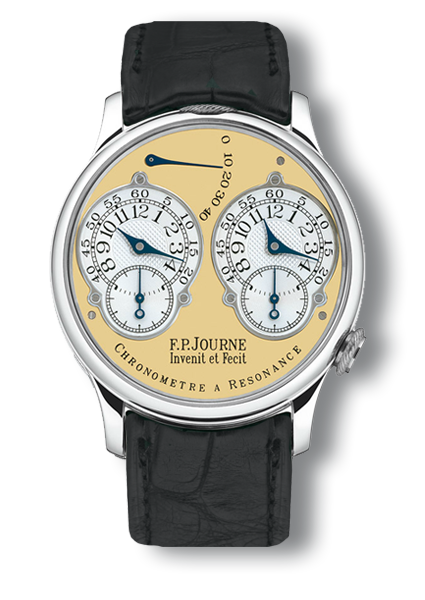

Chronomètre à Résonance

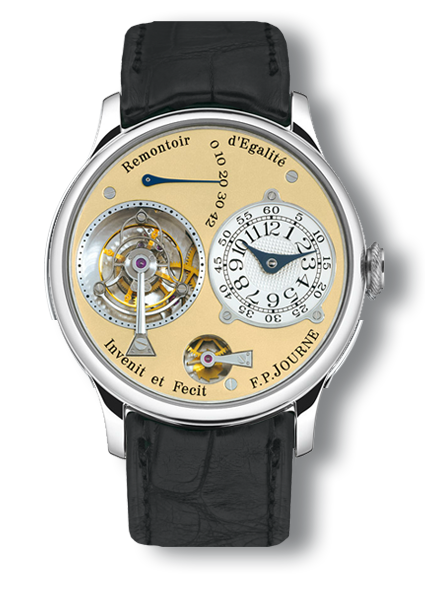

Tourbillon Souverain

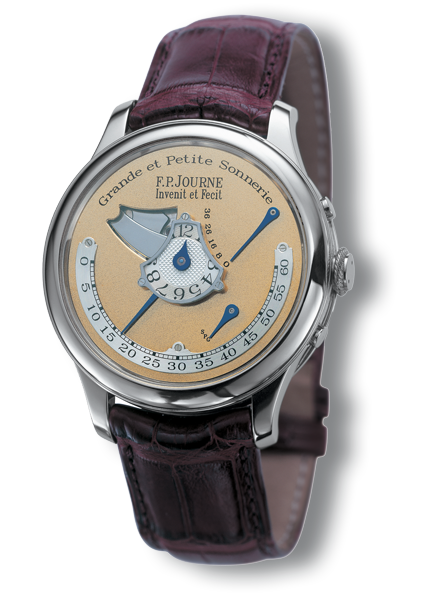

Sonnerie Souveraine
Brass Collection

Tourbillon Souverain CALIBRE 1498 FP Journe FP Journe

Platinum case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K yellow Gold and whitened guilloché Silver
Hands: blued Steel
Finishing
Platinum case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K yellow Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1498

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description


Platinum case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K 6N Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1498

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description


Platinum case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K white Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1498

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description


18K 6N Gold case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K 6N Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1498

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description


18K 6N Gold case
Diameter: 38 mm
Overall height: 9.9 mm
Dial: 18K white Gold and whitened guilloché Silver
Hands: blued Steel
CALIBRE 1498

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description


Other views
F.P.Journe
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe
Other views
F.P.Journe

About

This watch was produced between 1999 and 2003

A World Premiere:
the only wristwatch with remontoire (constant force device)

Always with the same preoccupation of improving the performance and precision of the watch, François-Paul Journe imagined that a remontoire and a tourbillon would result in better isochronism. The Tourbillon Souverain thus became the world's first wristwatch with a remontoire.

The invention of the tourbillon, which goes done as one of the most beautiful achievements of the XVIIIe century, is used to restore the equilibrium of the escapement and to maintain the stability of the rate in the vertical position. François-Paul Journe created this first tourbillon wristwatch with remontoire to this invention and to add another chapter to the history of horology.

Technical Specifications

Indications :

    Hours and minutes at 3:00
    Power reserve at 10:00

Dimensions :
  • Overall diameter of mvt : 32.40 mm
  • Casing-up diameter of mvt : 32.00 mm
  • Overall height of mvt : 6.60 mm
  • Height of winding system : 2.53 mm
  • Diameter of stem thread : S1.20 mm
Caracteristics :

    15 tooth escapment wheel
    90° anchor fork
    Balance with 4 inertia weights
    Flat anachron balance spring
    with Breguet overcoil
    Pinned stud
    Free-sprung
    Spring pinned to collet
    2 positions winding crown

Manual winding :

    20 turns of the crown

Main features :

    Tourbillon with constant force
    Manual winding
    Time adjustment by crown in position 2

Frequency :

    21600 VPH, 3 Hz

Balance :
  • Inertia : 11.00 mgcm2
  • Angle of lift : 52°
Amplitude :
  • 0h dial up : 280°
  • 24h dial up : 280°
Power reserve :

    42±2 hours

Number of jewels :

    28

Finishing :

    High quality
    Circular stripes on the bridges
    Geneva waves on baseplate
    Screw heads polished and bevelled
    Pegs with polished rounded ends

Number of components :
  • Movement : 191
  • Cased on leather strap : 228

At the heart of the movement
fpjourne

Technical description
